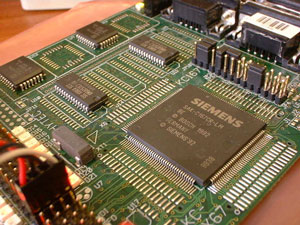

Picture 1
Picture 1 represents a universal robotic input output IO board. This board can run in parallel and at the same time 20 different motors and up to a thousand different channels. These channels can consist of relays, open collector drivers, mosfet, thyristor, triac drivers etc...
Please note the IO board is the interface board to PC and is not a power board.
